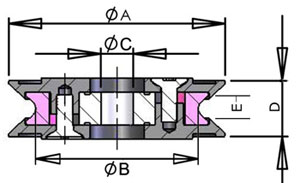

組合導線輪（過線輪）：應用于漆包線或絲線適量導向，其中部瓷圈由精密陶瓷制作，凹槽超精拋光達Ra0．2，瓷圈配高速軸承，兩側的擋板可防止繞線時漆包線跳出槽外，同時使繞線時的張力保持穩定一致，也有直接由全陶瓷與高速軸承組合的叫陶瓷瓷輪。適用于各類繞線機及紡織機械中的過線過絲部件。
1、主體為精密陶瓷
2、護套采用尼龍材料
3、水中使用可選用石墨代替軸承
|
Modle No |
A |
B |
C |
D |
E |
|
HCR001-B03 |
20 |
15 |
3 |
4.8 |
3 |
|
HCR002-B04 |
28.7 |
20 |
4 |
6.4 |
4 |
|
HCR003-B03 |
30.4 |
15 |
3 |
10 |
3 |
|
HCR004-B04 |
40 |
20 |
4 |
15 |
3 |
|
HCR045-B05 |
45 |
30 |
5 |
10 |
6 |
|
HCR045-B06 |
6 | ||||
|
HCR005-B05 |
54.5 |
30 |
5 |
10 |
6 |
|
HCR005-B06 |
6 | ||||
|
HCR005-B07 |
7 | ||||
|
HCR005-B08 |
8 | ||||
|
HCR006-B07 |
60 |
40 |
7 |
13 |
7 |
|
HCR006-B08 |
8 | ||||
|
HCR006-B10 |
10 | ||||
|
HCR006-B12 |
12 | ||||
|
HCR007-B05 |
60 |
30 |
5 |
18 |
6 |
|
HCR007-B06 |
6 | ||||
|
HCR007-B07 |
7 | ||||
|
HCR007-B08 |
8 | ||||
|
HCR008-B10 |
79.2 |
50 |
10 |
15 |
9 |
|
HCR009-B07 |
80.5 |
40 |
7 |
25 |
7 |
|
HCR009-B08 |
8 | ||||
|
HCR010-B10 |
99.3 |
50 |
10 |
29.5 |
9 |
